Querying ClickHouse Parameterized Views as a Graph

Private Preview

Support for modeling ClickHouse parameterized views as graph elements is currently in private preview. This is an experimental feature and subject to change in future releases. Please contact us if you need access.

Summary

In this tutorial, you will:

  • Create a ClickHouse database, populate it with example data, and define parameterized views;
  • Start a PuppyGraph Docker container and model the parameterized views as a graph schema;
  • Query the graph using Cypher and Gremlin by passing parameters to the views.

Prerequisites

Please ensure that docker compose is available. The installation can be verified by running:

docker compose version

See https://docs.docker.com/compose/install/ for Docker Compose installation instructions and https://www.docker.com/get-started/ for more details on Docker.

Accessing the PuppyGraph Web UI requires a browser. However, the tutorial offers alternative instructions for those who wish to exclusively use the CLI.

Deployment

▶ Create a file docker-compose.yaml with the following content:

docker-compose.yaml
version: "3"
services:
  puppygraph:
    image: puppygraph/puppygraph-dev:preview-20260128
    pull_policy: always
    container_name: puppy
    environment:
      - PUPPYGRAPH_USERNAME=puppygraph
      - PUPPYGRAPH_PASSWORD=puppygraph123
    networks:
      ch_net:
    ports:
      - "8081:8081"
      - "8182:8182"
      - "7687:7687"
  clickhouse-server:
    image: clickhouse/clickhouse-server:25.12
    container_name: clickhouse-server
    environment:
      - CLICKHOUSE_USER=ch_user
      - CLICKHOUSE_PASSWORD=ch_pwd
    networks:
      - ch_net
    ports:
      - "8123:8123"
      - "9000:9000"
      - "9004:9004"
networks:
  ch_net:
    name: puppy-ch

Update password

Ensure to modify your password environment variables, particularly when your machine is publicly accessible.

▶ Then run the following command to start ClickHouse and PuppyGraph:

docker compose up -d

[+] Running 3/3
 ✔ Network puppy-ch             Created
 ✔ Container clickhouse-server  Started
 ✔ Container puppy              Started

Data Preparation

This tutorial is designed to be comprehensive and standalone, so it includes steps to populate data in ClickHouse. In practical scenarios, PuppyGraph can query data directly from your existing ClickHouse databases.

▶ Run the following command to start a ClickHouse shell to access the database:

docker exec -it clickhouse-server clickhouse-client \
  --user ch_user \
  --password ch_pwd

The shell will be as follows:

ClickHouse client version 25.12.1.649 (official build).
Connecting to localhost:9000 as user ch_user.
Connected to ClickHouse server version 25.12.1.

Warnings:
 * Delay accounting is not enabled, OSIOWaitMicroseconds will not be gathered. You can enable it using `sudo sh -c 'echo 1 > /proc/sys/kernel/task_delayacct'` or by using sysctl.

0e925fdc2d47 :)

▶ Then execute the following SQL statements in the shell to create tables and insert data.

ClickHouse SQL Script
-- Drop databases if they exist
DROP DATABASE IF EXISTS modern;
DROP DATABASE IF EXISTS modern_view;


-- Create primary database and its tables
CREATE DATABASE IF NOT EXISTS modern;

CREATE TABLE modern.person
(
    id   String,
    name String,
    age  Int32
) ENGINE = MergeTree()
ORDER BY id;

INSERT INTO modern.person (id, name, age) VALUES
    ('v1','marko',29),
    ('v2','vadas',27),
    ('v4','josh',32),
    ('v6','peter',35);

CREATE TABLE modern.software
(
    id   String,
    name String,
    lang String
) ENGINE = MergeTree()
ORDER BY id;

INSERT INTO modern.software (id, name, lang) VALUES
    ('v3','lop','java'),
    ('v5','ripple','java');

CREATE TABLE modern.created
(
    id      String,
    from_id String,
    to_id   String,
    weight  Float64
) ENGINE = MergeTree()
ORDER BY id;

INSERT INTO modern.created (id, from_id, to_id, weight) VALUES
    ('e9','v1','v3',0.4),
    ('e10','v4','v5',1.0),
    ('e11','v4','v3',0.4),
    ('e12','v6','v3',0.2);

CREATE TABLE modern.knows
(
    id      String,
    from_id String,
    to_id   String,
    weight  Float64
) ENGINE = MergeTree()
ORDER BY id;

INSERT INTO modern.knows (id, from_id, to_id, weight) VALUES
    ('e7','v1','v2',0.5),
    ('e8','v1','v4',1.0);


/* 1) Create view database */
CREATE DATABASE IF NOT EXISTS modern_view;

/* 2) Parameterized view for `person` */
CREATE OR REPLACE VIEW modern_view.person AS
SELECT
    id, name, age
FROM modern.person
WHERE
    ({id:String} = '' OR id = {id:String})
    AND ({name:String} = '' OR name = {name:String})
    AND (age >= {min_age:Int32})
    AND (age <= {max_age:Int32});

/* 3) Parameterized view for `software` */
CREATE OR REPLACE VIEW modern_view.software AS
SELECT
    id, name, lang
FROM modern.software
WHERE
    ({lang:String} = '' OR lang = {lang:String})
    AND ({name:String} = '' OR name = {name:String});

/* 4) Parameterized view for `created` */
CREATE OR REPLACE VIEW modern_view.created AS
SELECT
    id, from_id, to_id, weight
FROM modern.created
WHERE
    ({from_id:String} = '' OR from_id = {from_id:String})
    AND ({to_id:String} = '' OR to_id = {to_id:String})
    AND (weight >= {min_w:Float64})
    AND (weight <= {max_w:Float64});

/* 5) Parameterized view for `knows` */
CREATE OR REPLACE VIEW modern_view.knows AS
SELECT
    id, from_id, to_id, weight
FROM modern.knows
WHERE
    ({from_id:String} = '' OR from_id = {from_id:String})
    AND ({to_id:String} = '' OR to_id = {to_id:String})
    AND (weight >= {min_w:Float64})
    AND (weight <= {max_w:Float64});


-- Example queries against parameterized views
SELECT * FROM modern_view.person(id='v1', name='', min_age=0, max_age=200);

SELECT * FROM modern_view.software(lang='java', name='');

SELECT * FROM modern_view.created(from_id='v4', to_id='', min_w=0.0, max_w=1.0);

SELECT * FROM modern_view.knows(from_id='v1', to_id='', min_w=0.0, max_w=1.0);

The above SQL script performs the following actions:

  1. Creates a database modern and populates it with tables person, software, created, and knows.
  2. Creates a database modern_view and defines parameterized views for each table to enable filtered access:
    • modern_view.person: A view on modern.person that accepts parameters for id, name, min_age, and max_age.
    • modern_view.software: A view on modern.software that accepts parameters for lang and name.
    • modern_view.created: A view on modern.created edge table that accepts parameters for from_id, to_id, min_w (minimum weight), and max_w (maximum weight).
    • modern_view.knows: A view on modern.knows edge table that accepts parameters for from_id, to_id, min_w (minimum weight), and max_w (maximum weight).

The data populated in the modern database is as follows:

id name age
v1 marko 29
v2 vadas 27
v4 josh 32
v6 peter 35
id name lang
v3 lop java
v5 ripple java
id from_id to_id weight
e7 v1 v2 0.5
e8 v1 v4 1.0
id from_id to_id weight
e9 v1 v3 0.4
e10 v4 v5 1.0
e11 v4 v3 0.4
e12 v6 v3 0.2

We then define a graph on top of the data tables we just created. Actually, this is the "Modern" graph defined by Apache Tinkerpop.

Modern Graph

Modern Graph

Modeling a Graph

Step 1: Connecting to ClickHouse Server

▶ Log in to PuppyGraph with puppygraph as the username and puppygraph123 as the password.

PuppyGraph Login

PuppyGraph Login

▶ Click on Create graph schema to create a new graph schema.

Fill in the fields as follows.

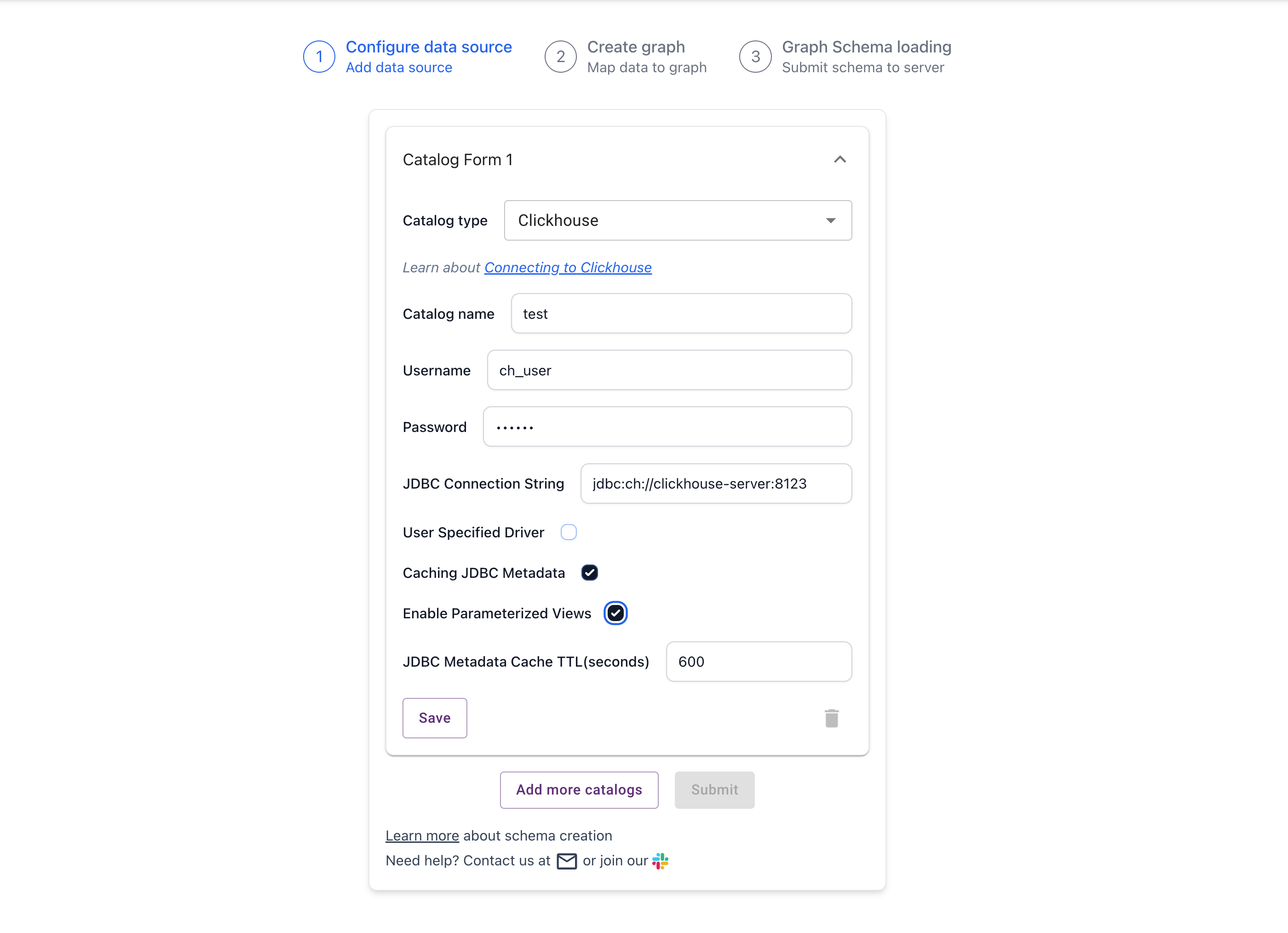

Create ClickHouse Catalog

Parameter Value
Catalog type Clickhouse
Catalog name test
Enable Parameterized Views Toggle the switch to on
Username Same as CLICKHOUSE_USER in docker-compose.yaml (default: ch_user)
Password Same as CLICKHOUSE_PASSWORD in docker-compose.yaml (default: ch_pwd)
JDBC Connection String jdbc:ch://clickhouse-server:8123
Driver Class The class name of the JDBC Driver. The default value is com.clickhouse.jdbc.ClickHouseDriver.

▶ Click on Save, then click on Submit to connect to ClickHouse Server.

Step 2: Building the Graph Schema

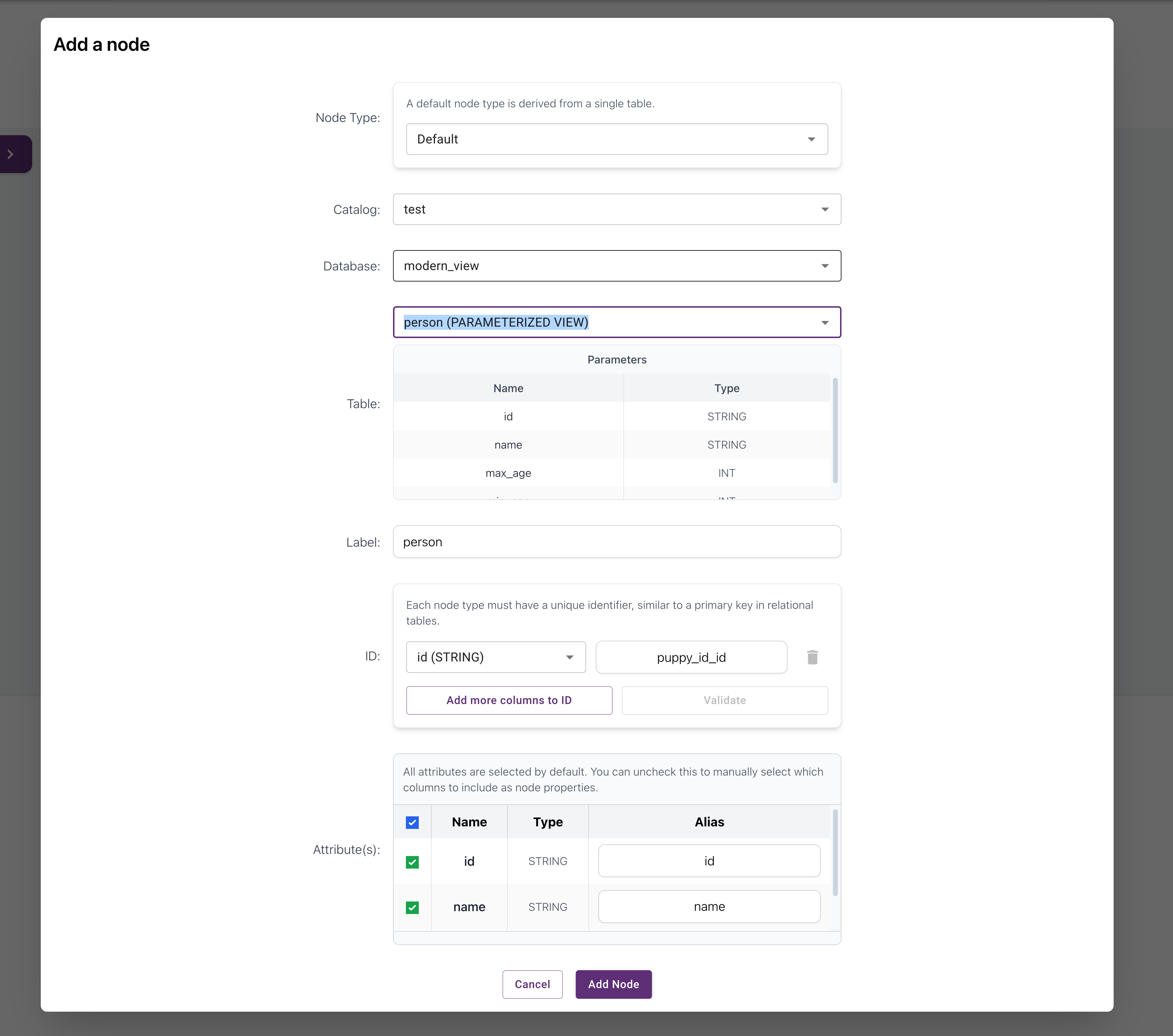

▶ In the Schema Builder, we will map the views to vertices and edges. First, let's create the person vertex from person view. Schema Builder screen showing configuration of the person vertex from the person view

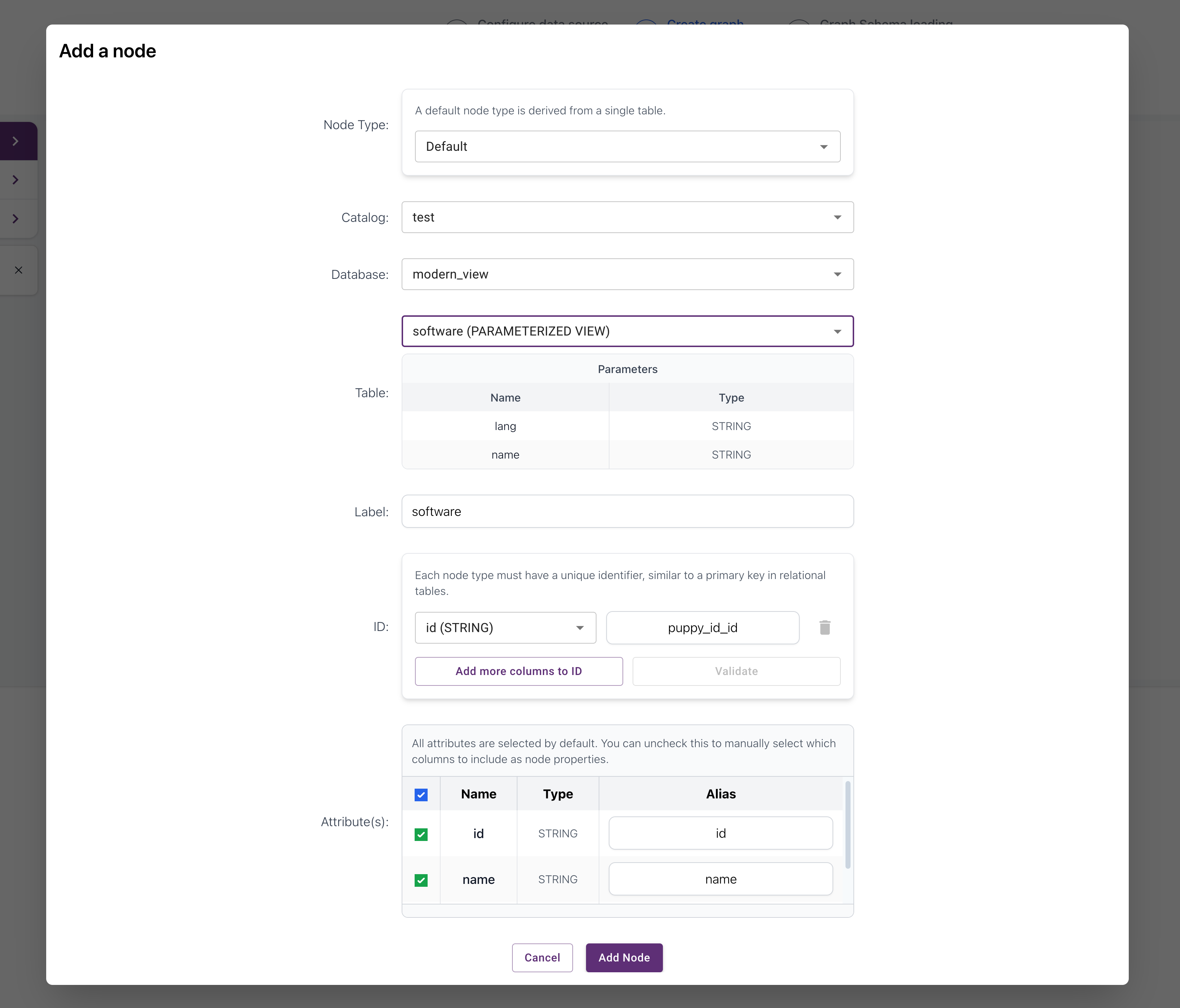

▶ Then, create the software vertex from software view. Schema Builder screen showing configuration of the software vertex from the software view

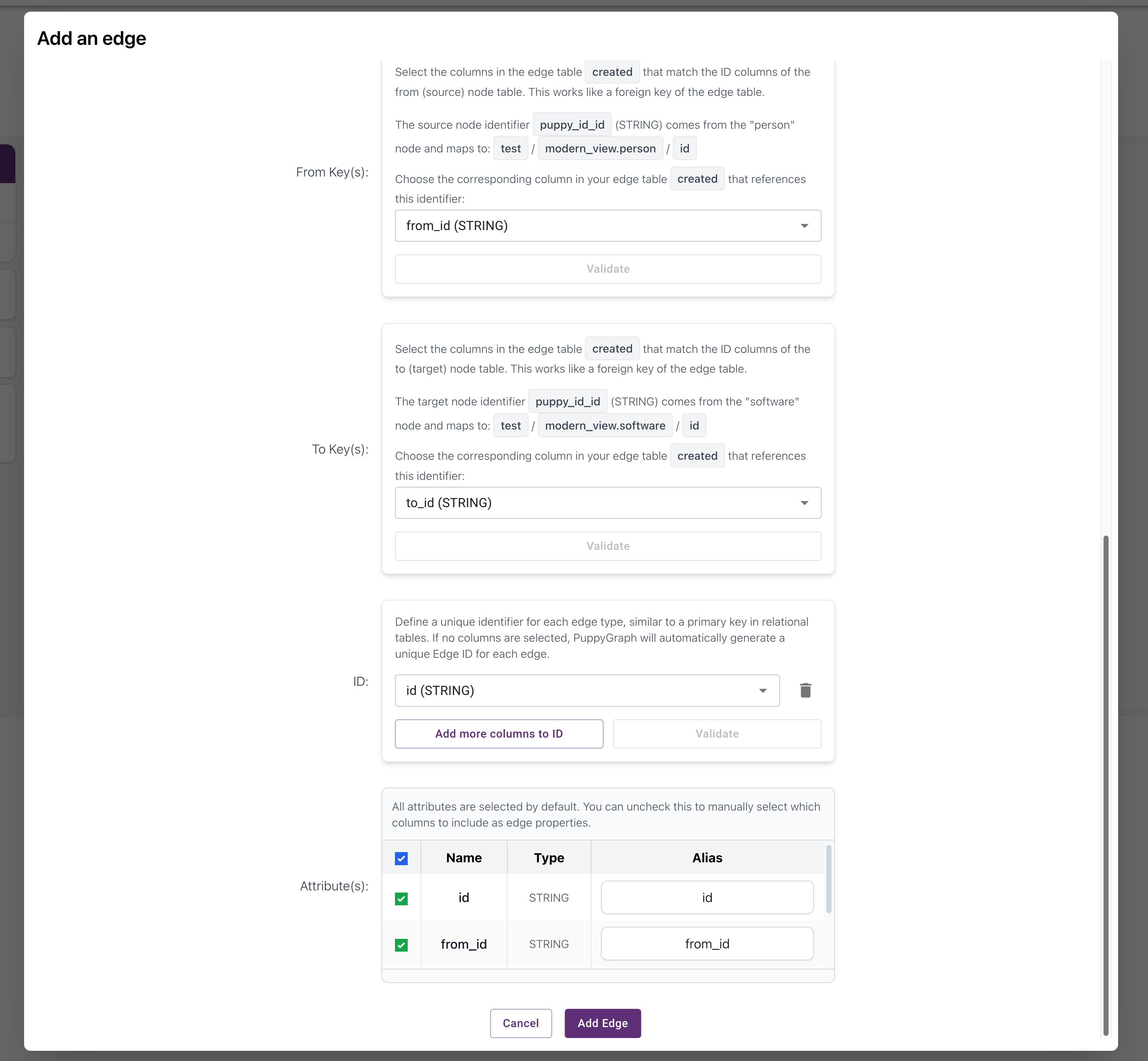

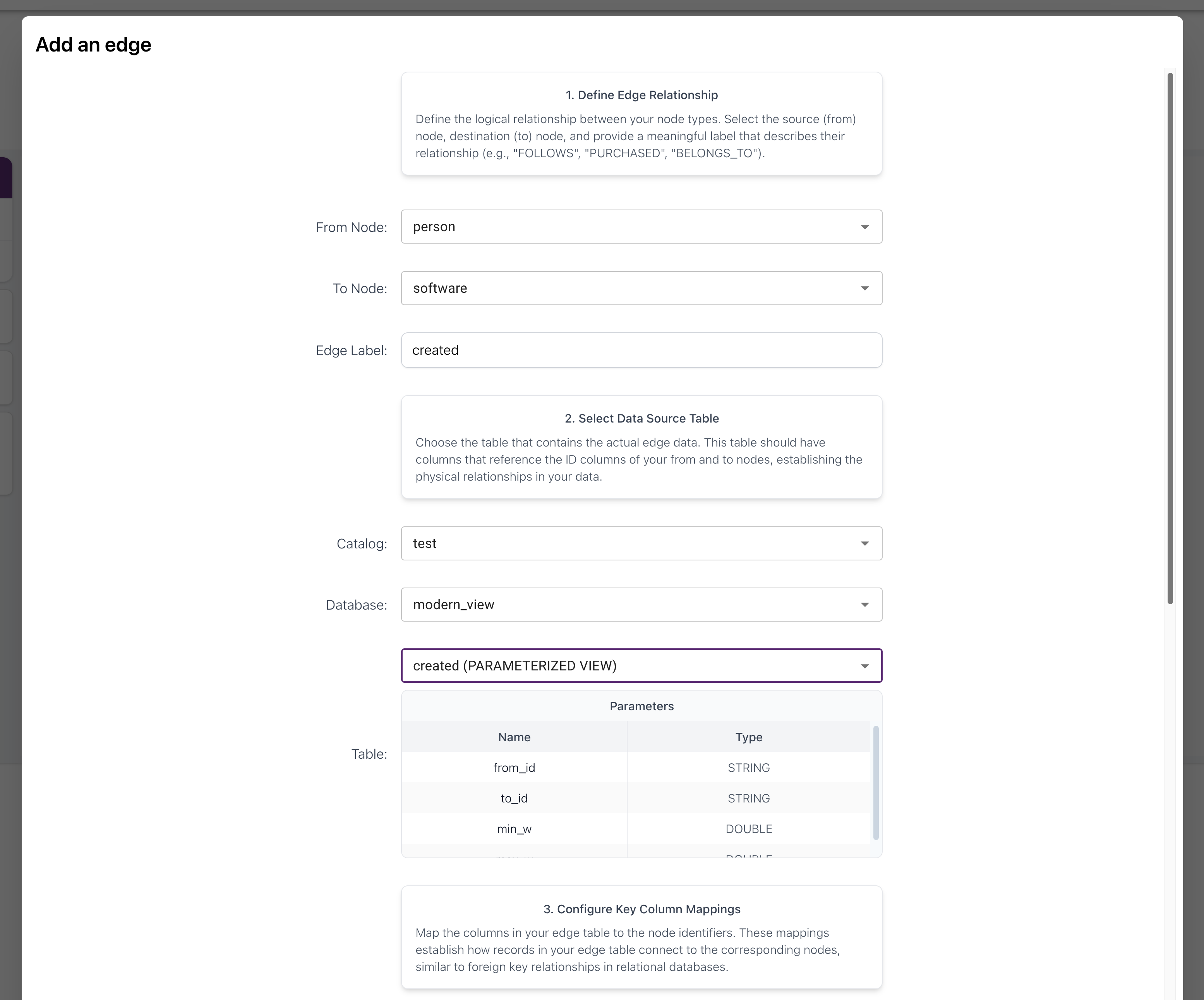

▶ Next, create the created edge from created view. This involves selecting the view and defining the source and target vertices. Schema Builder screen selecting the created view for an edge Schema Builder screen defining source and target vertices for the created edge

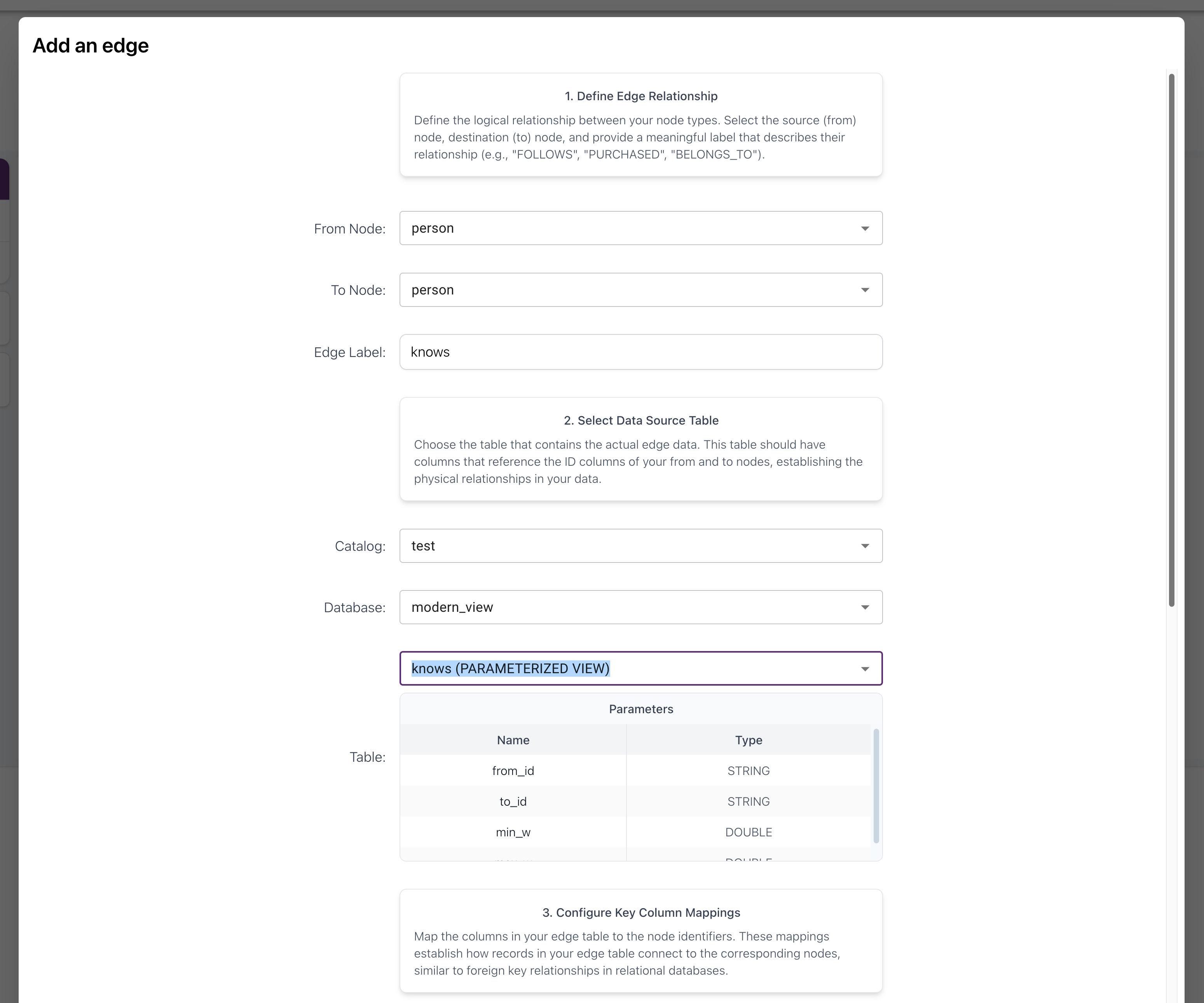

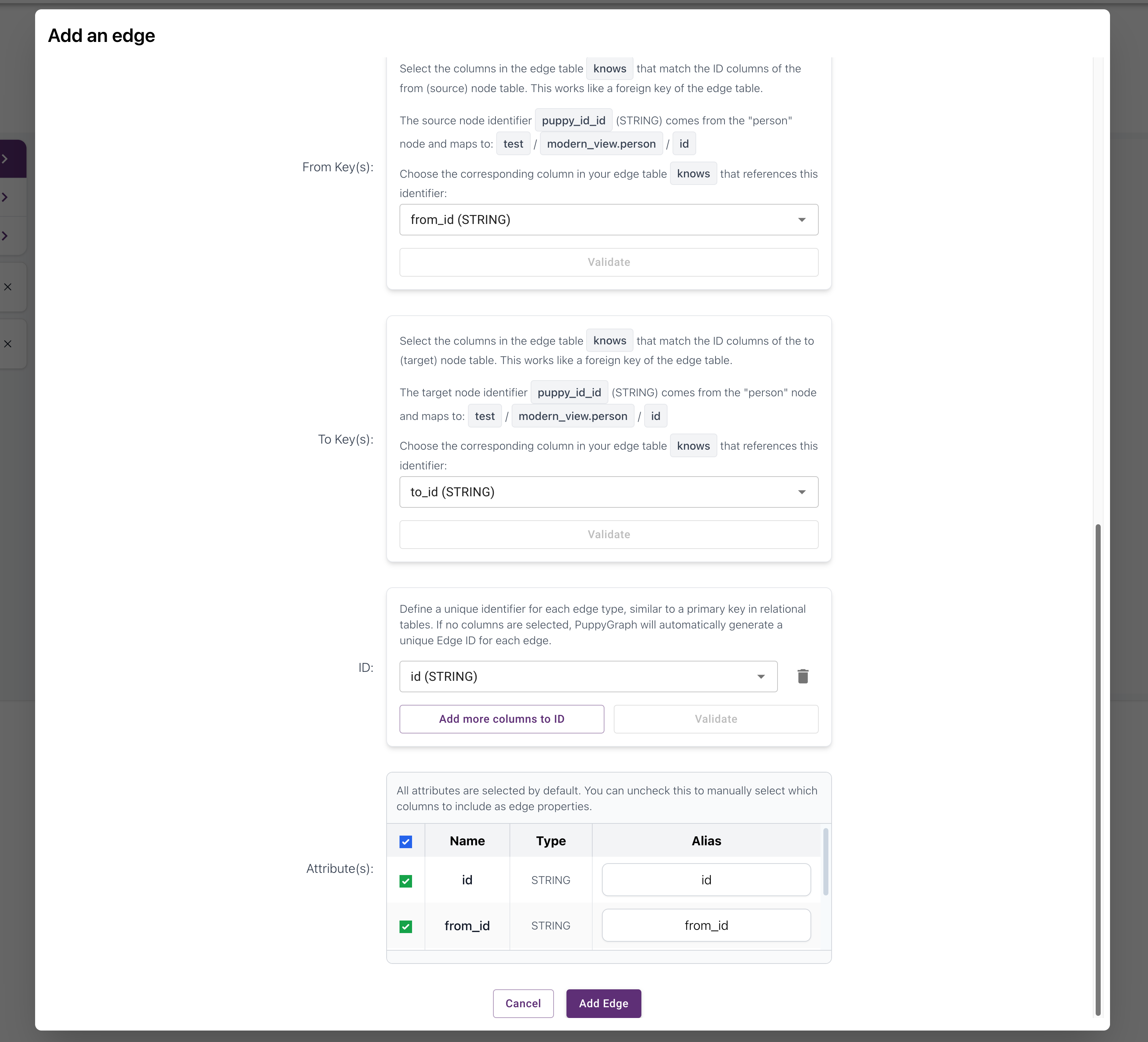

▶ Finally, create the knows edge from knows view. Schema Builder screen selecting the knows view for an edge Schema Builder screen configuring source and target vertices for the knows edge

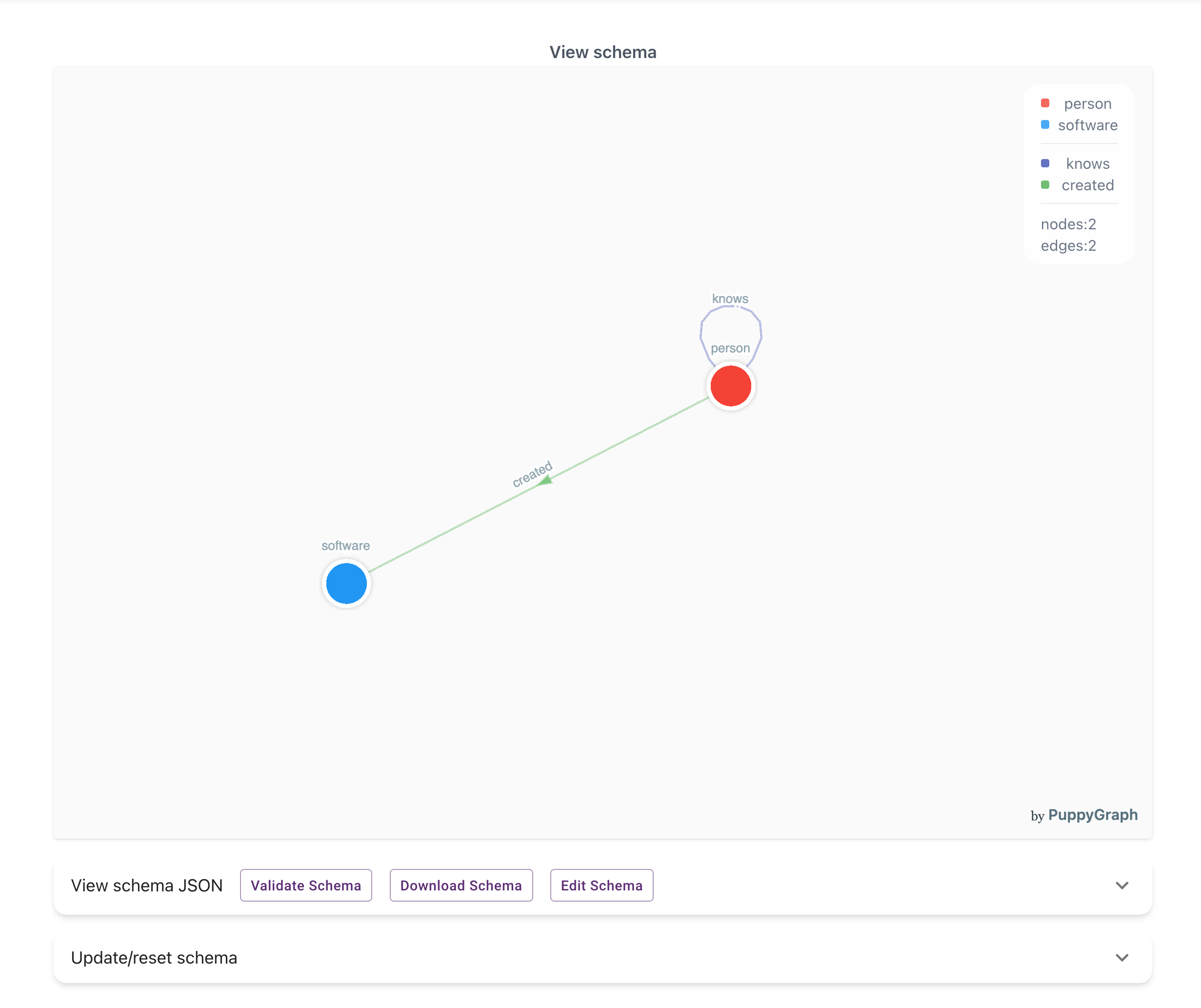

The graph schema works with parameterized views just like regular tables. Graph schema view showing vertices and edges created from parameterized views ▶ Submit the schema to create the graph.

Alternatively, you can upload the following schema.json to create the graph:

schema.json
{
  "catalogs": [
    {
      "name": "test",
      "type": "clickhouse",
      "jdbc": {
        "username": "ch_user",
        "password": "ch_pwd",
        "jdbcUri": "jdbc:ch://clickhouse-server:8123",
        "enableMetaCache": "true",
        "metaCacheExpireSec": "600"
      },
      "enableParameterizedViews": "true"
    }
  ],
  "graph": {
    "vertices": [
      {
        "label": "person",
        "oneToOne": {
          "tableSource": {
            "catalog": "test",
            "schema": "modern_view",
            "table": "person",
            "parameters": [
              {
                "name": "id",
                "type": "STRING"
              },
              {
                "name": "name",
                "type": "STRING"
              },
              {
                "name": "max_age",
                "type": "INT"
              },
              {
                "name": "min_age",
                "type": "INT"
              }
            ]
          },
          "id": {
            "fields": [
              {
                "type": "STRING",
                "field": "id",
                "alias": "puppy_id_id"
              }
            ]
          },
          "attributes": [
            {
              "type": "STRING",
              "field": "id",
              "alias": "id"
            },
            {
              "type": "STRING",
              "field": "name",
              "alias": "name"
            },
            {
              "type": "INT",
              "field": "age",
              "alias": "age"
            }
          ]
        }
      },
      {
        "label": "software",
        "oneToOne": {
          "tableSource": {
            "catalog": "test",
            "schema": "modern_view",
            "table": "software",
            "parameters": [
              {
                "name": "lang",
                "type": "STRING"
              },
              {
                "name": "name",
                "type": "STRING"
              }
            ]
          },
          "id": {
            "fields": [
              {
                "type": "STRING",
                "field": "id",
                "alias": "puppy_id_id"
              }
            ]
          },
          "attributes": [
            {
              "type": "STRING",
              "field": "id",
              "alias": "id"
            },
            {
              "type": "STRING",
              "field": "name",
              "alias": "name"
            },
            {
              "type": "STRING",
              "field": "lang",
              "alias": "lang"
            }
          ]
        }
      }
    ],
    "edges": [
      {
        "label": "knows",
        "fromVertex": "person",
        "toVertex": "person",
        "tableSource": {
          "catalog": "test",
          "schema": "modern_view",
          "table": "knows",
          "parameters": [
            {
              "name": "from_id",
              "type": "STRING"
            },
            {
              "name": "to_id",
              "type": "STRING"
            },
            {
              "name": "min_w",
              "type": "DOUBLE"
            },
            {
              "name": "max_w",
              "type": "DOUBLE"
            }
          ]
        },
        "id": {
          "fields": [
            {
              "type": "STRING",
              "field": "id",
              "alias": "puppy_id_id"
            }
          ]
        },
        "fromId": {
          "fields": [
            {
              "type": "STRING",
              "field": "from_id",
              "alias": "puppy_from_from_id"
            }
          ]
        },
        "toId": {
          "fields": [
            {
              "type": "STRING",
              "field": "to_id",
              "alias": "puppy_to_to_id"
            }
          ]
        },
        "attributes": [
          {
            "type": "STRING",
            "field": "id",
            "alias": "id"
          },
          {
            "type": "STRING",
            "field": "from_id",
            "alias": "from_id"
          },
          {
            "type": "STRING",
            "field": "to_id",
            "alias": "to_id"
          },
          {
            "type": "DOUBLE",
            "field": "weight",
            "alias": "weight"
          }
        ]
      },
      {
        "label": "created",
        "fromVertex": "person",
        "toVertex": "software",
        "tableSource": {
          "catalog": "test",
          "schema": "modern_view",
          "table": "created",
          "parameters": [
            {
              "name": "from_id",
              "type": "STRING"
            },
            {
              "name": "to_id",
              "type": "STRING"
            },
            {
              "name": "min_w",
              "type": "DOUBLE"
            },
            {
              "name": "max_w",
              "type": "DOUBLE"
            }
          ]
        },
        "id": {
          "fields": [
            {
              "type": "STRING",
              "field": "id",
              "alias": "puppy_id_id"
            }
          ]
        },
        "fromId": {
          "fields": [
            {
              "type": "STRING",
              "field": "from_id",
              "alias": "puppy_from_from_id"
            }
          ]
        },
        "toId": {
          "fields": [
            {
              "type": "STRING",
              "field": "to_id",
              "alias": "puppy_to_to_id"
            }
          ]
        },
        "attributes": [
          {
            "type": "STRING",
            "field": "id",
            "alias": "id"
          },
          {
            "type": "STRING",
            "field": "from_id",
            "alias": "from_id"
          },
          {
            "type": "STRING",
            "field": "to_id",
            "alias": "to_id"
          },
          {
            "type": "DOUBLE",
            "field": "weight",
            "alias": "weight"
          }
        ]
      }
    ]
  }
}

Querying Parameterized Views

When querying parameterized views, we need to pass parameters to the views. PuppyGraph supports passing these parameters using USING clause in Cypher and with() step in Gremlin.

Supported Parameter Types

The supported parameter types for the views are the ClickHouse types listed in Data Type Mapping, excluding UUID, Enum8 and Enum16.

Cypher Query Examples

In Cypher, use the USING clause at the beginning of the query to specify parameters for each view.

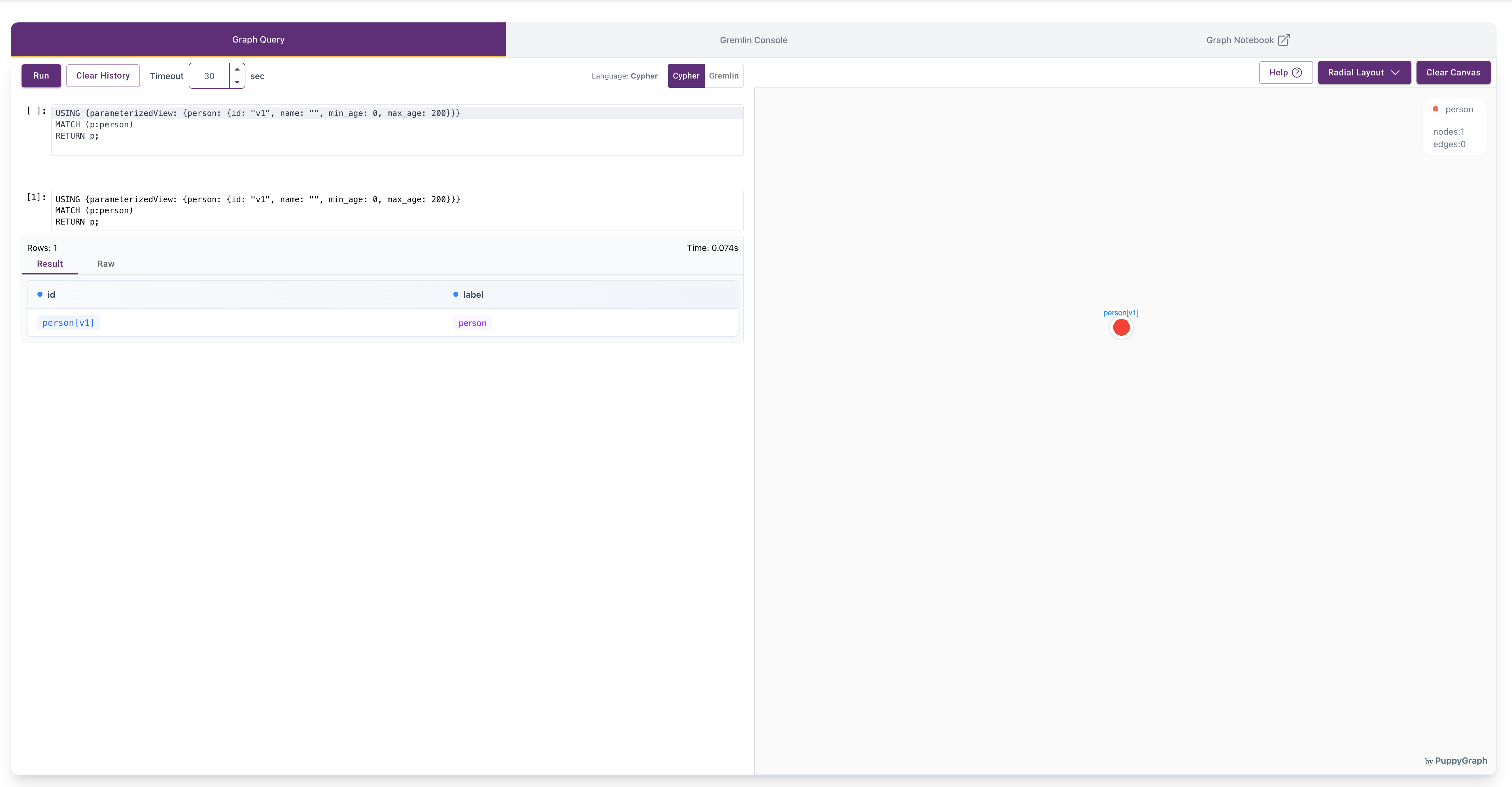

Query 1: Retrieve the person node with ID "v1" by passing specific parameters to the person view

USING {parameterizedView: {person: {id: "v1", name: "", min_age: 0, max_age: 200}}}
MATCH (p:person)
RETURN p;

Query 2: Retrieve the name of the person with ID "v4", the software they created, and the weight of the creation edge

USING {parameterizedView: {person: {id: "v4", name: "", min_age: 0, max_age: 200},
                           created: {from_id: "v4", to_id: "", min_w: 0.0, max_w: 1.0},
                           software: {lang: "", name: ""}}}
MATCH (p:person)-[c:created]->(s:software)
RETURN p.name, s.name, c.weight;

Query 3: Retrieve the path from person "v1" to the "java" software they created

USING {parameterizedView: {person: {id: "v1", name: "", min_age: 0, max_age: 100},
                           software: {lang: "java", name: ""},
                           created: {from_id: "", to_id: "", min_w: 0.0, max_w: 1.0}}}
MATCH p = (n:person)-[e:created]->(s:software)
RETURN p;

Gremlin Query Examples

In Gremlin, use the with step to configure the parameterizedView strategy with the parameters map.

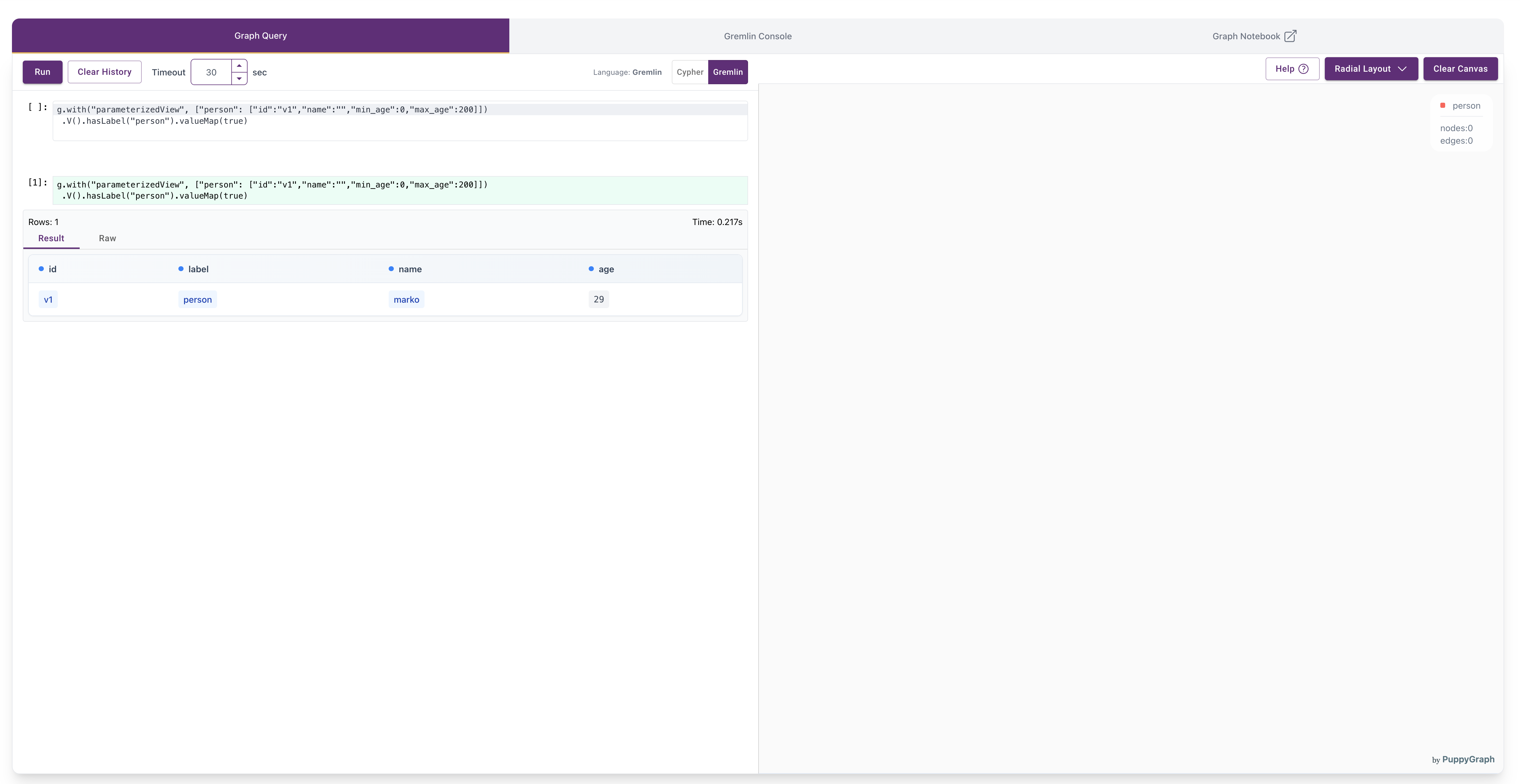

Query 1: Retrieve the person node with ID "v1" by passing specific parameters to the person view

g.with("parameterizedView", ["person": ["id":"v1","name":"","min_age":0,"max_age":200]])
 .V().hasLabel("person").valueMap(true)

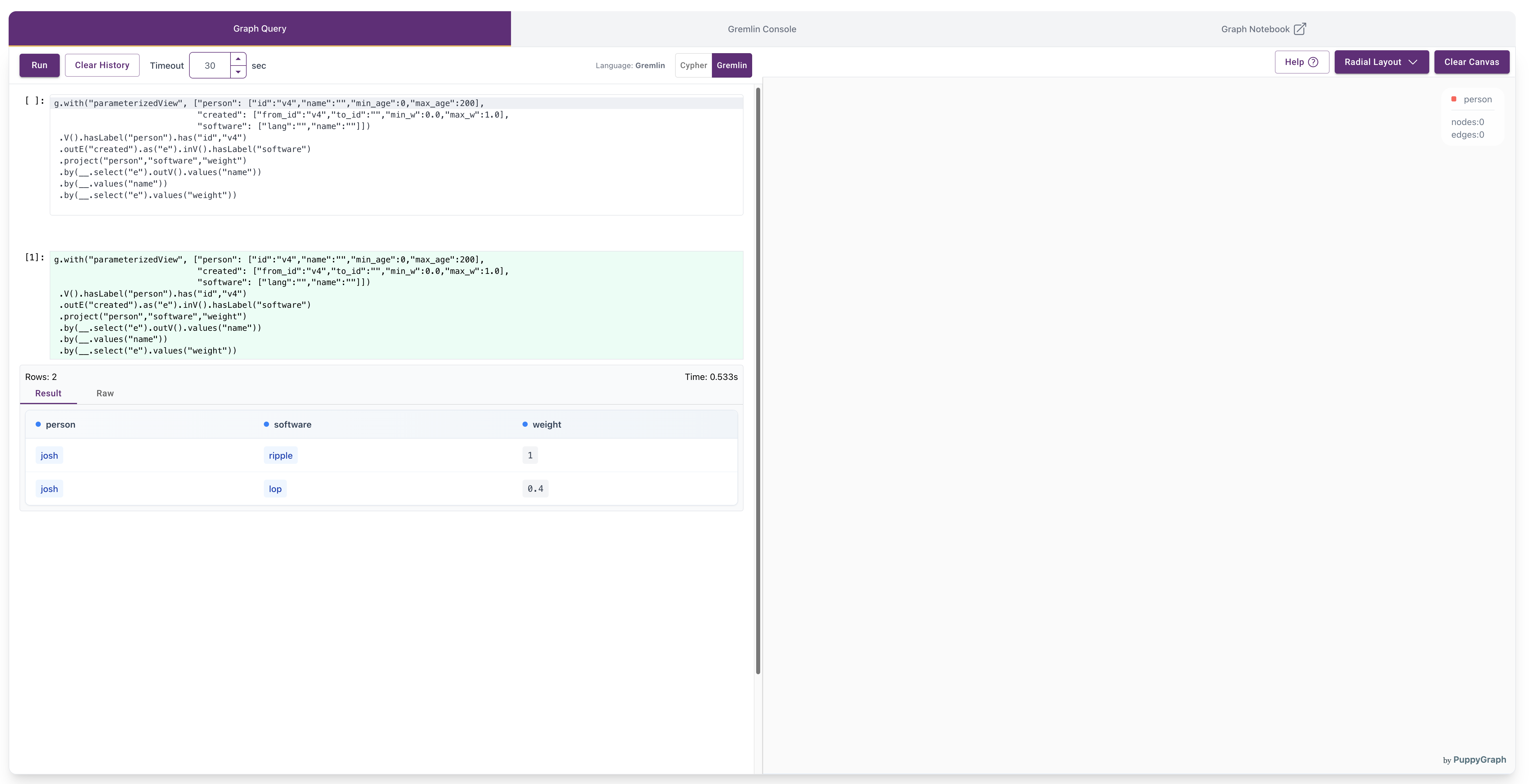

Query 2: Retrieve the name of the person with ID "v4", the software they created, and the weight of the creation edge

g.with("parameterizedView", ["person": ["id":"v4","name":"","min_age":0,"max_age":200],
                             "created": ["from_id":"v4","to_id":"","min_w":0.0,"max_w":1.0],
                             "software": ["lang":"","name":""]])
 .V().hasLabel("person").has("id","v4")
 .outE("created").as("e").inV().hasLabel("software")
 .project("person","software","weight")
 .by(__.select("e").outV().values("name"))
 .by(__.values("name"))
 .by(__.select("e").values("weight"))

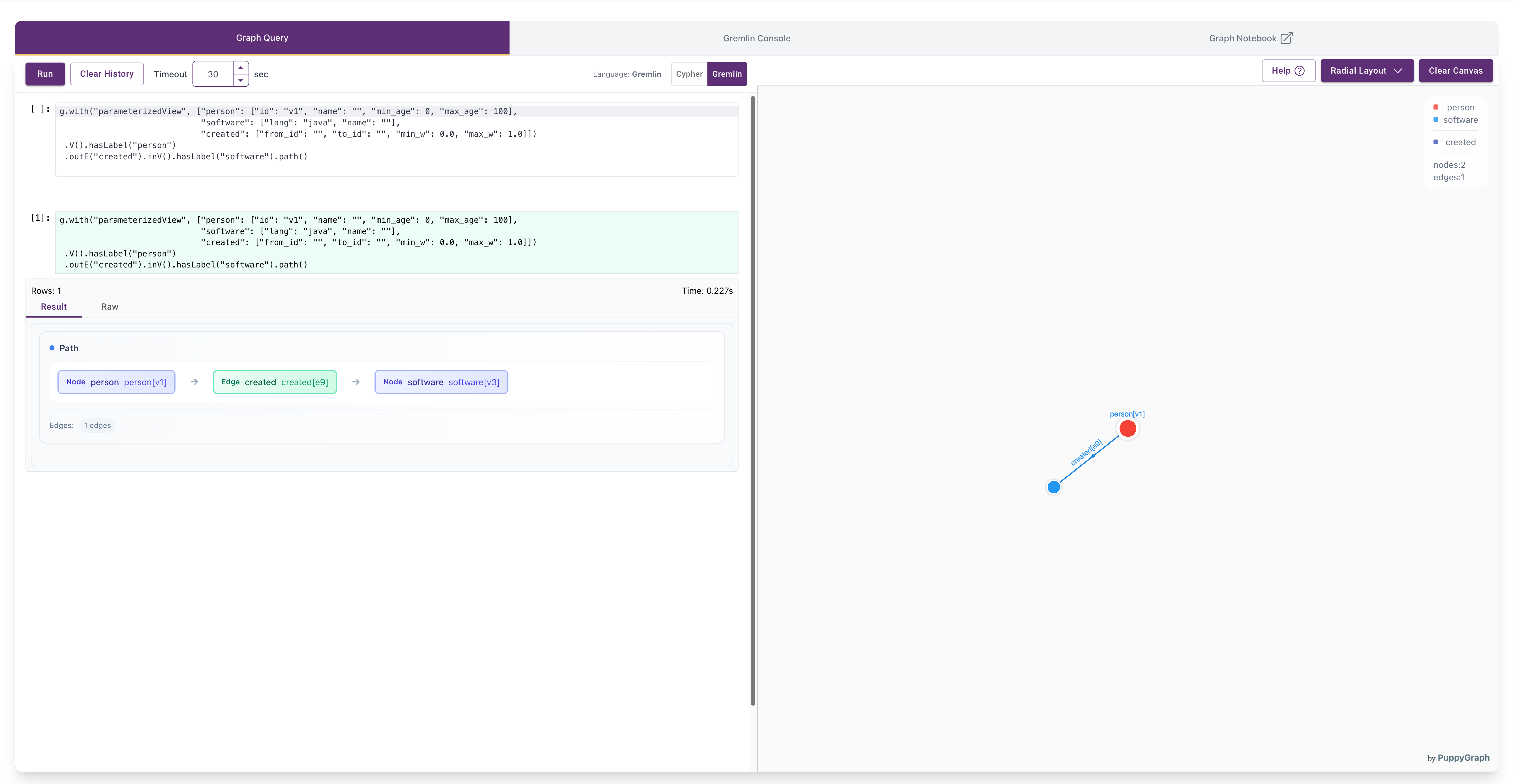

Query 3: Retrieve the path from person "v1" to the "java" software they created

g.with("parameterizedView", ["person": ["id": "v1", "name": "", "min_age": 0, "max_age": 100],
                             "software": ["lang": "java", "name": ""],
                             "created": ["from_id": "", "to_id": "", "min_w": 0.0, "max_w": 1.0]])
 .V().hasLabel("person")
 .outE("created").inV().hasLabel("software").path()

Cleaning up

▶ Run the following command to shut down and remove the services:

docker compose down

[+] Running 3/3
 ✔ Container clickhouse-server  Removed
 ✔ Container puppygraph         Removed
 ✔ Network puppy-ch             Removed
