Exporting Query Results

PuppyGraph exports Cypher, Gremlin, and graph algorithm results to CSV or Parquet files. An administrator registers an export location with its storage settings and credentials; queries reference that location and a directory under its base path. Queries can also reuse a registered catalog to export files or create Iceberg and Hive tables.

Upgrading from PuppyGraph 1.9.0 or earlier

This page describes the latest PuppyGraph release. In PuppyGraph 1.9.0 and earlier, export queries supplied their own storage settings, such as storageType, endpoint, identifier, credential, region, or cloud identity options, in EXPORT TO ... PROPERTIES or Gremlin .with() options. PuppyGraph 1.10.0 removed query-supplied storage settings for security reasons, and queries that still supply them fail.

Upgrade to the latest PuppyGraph release, then update your exports:

  1. An Admin registers an export location with the storage settings and credentials.
  2. Query authors change the target to <location>:<directory> and remove the storage settings from the query.
  3. Exports that use catalog keep working. See Export using a registered catalog.

For example, in Cypher:

// 1.9.0 and earlier
EXPORT TO 's3://<bucket>/<directory>/' PROPERTIES { <storage settings> }

// 1.10.0 and later
EXPORT TO '<location>:<directory>'

Supported destinations

Destination CSV files Parquet files Iceberg / Hive tables
Registered location: Amazon S3, S3-compatible storage such as MinIO AIStor or RustFS, Google Cloud Storage, Azure Data Lake Storage Gen2, or HDFS ✓ ✓ Not supported
Registered catalog with compatible storage ✓ ✓ ✓

The destination bucket, container, or filesystem must already exist and its credentials must allow writing to it. File export targets are directories, not individual filenames: PuppyGraph writes the result files under the target directory. Table exports also require permission to create tables in the target database.

Register an export location

With RBAC enabled, only an Admin can add, edit, or delete locations (CATALOG:write). Listing requires CATALOG:read, which all built-in roles have; the stored credentials (identifier, credential, and clientSecret) are masked. With RBAC disabled, all authenticated users have Admin permissions. See Role-Based Access Control.

As an Admin, you can register a location or update an existing one:

  1. Open Settings → Exports.
  2. Click Add Location.

  3. Enter a name, select the storage type, and provide a base path and storage credentials. For example, for a RustFS bucket named exports:

    Field Example
    Name rustfs_exports
    Storage type S3 Compatible
    Path s3://exports/
    Endpoint http://rustfs:9000 (reachable from PuppyGraph)
    Access key Your RustFS access key
    Secret key Your RustFS secret key
    Enable path style access On, the default. See S3-compatible storage.

  4. Click Add. The location appears in the list.

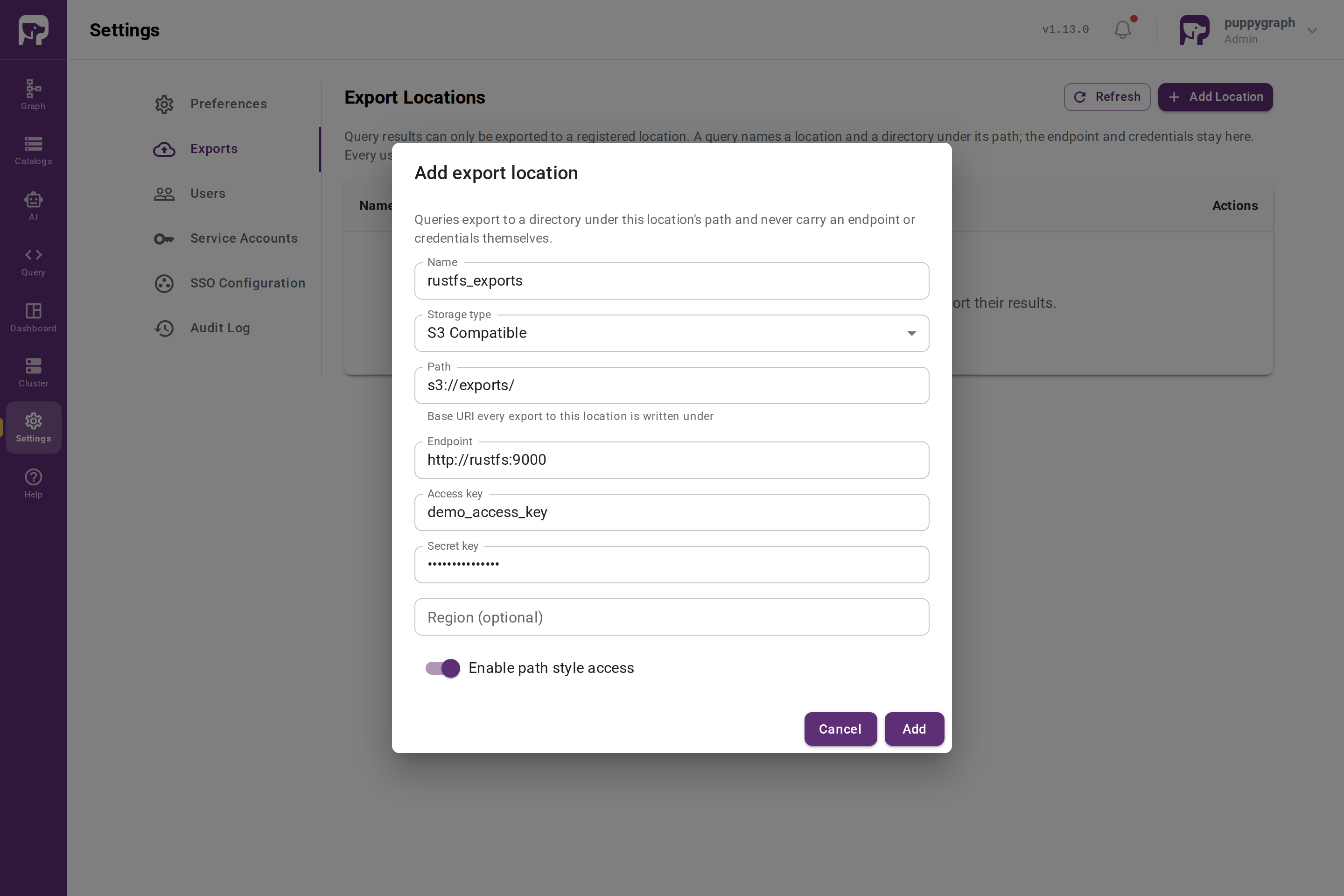

Add export location dialog configured for RustFS
Registering a RustFS export location in PuppyGraph 1.13.0

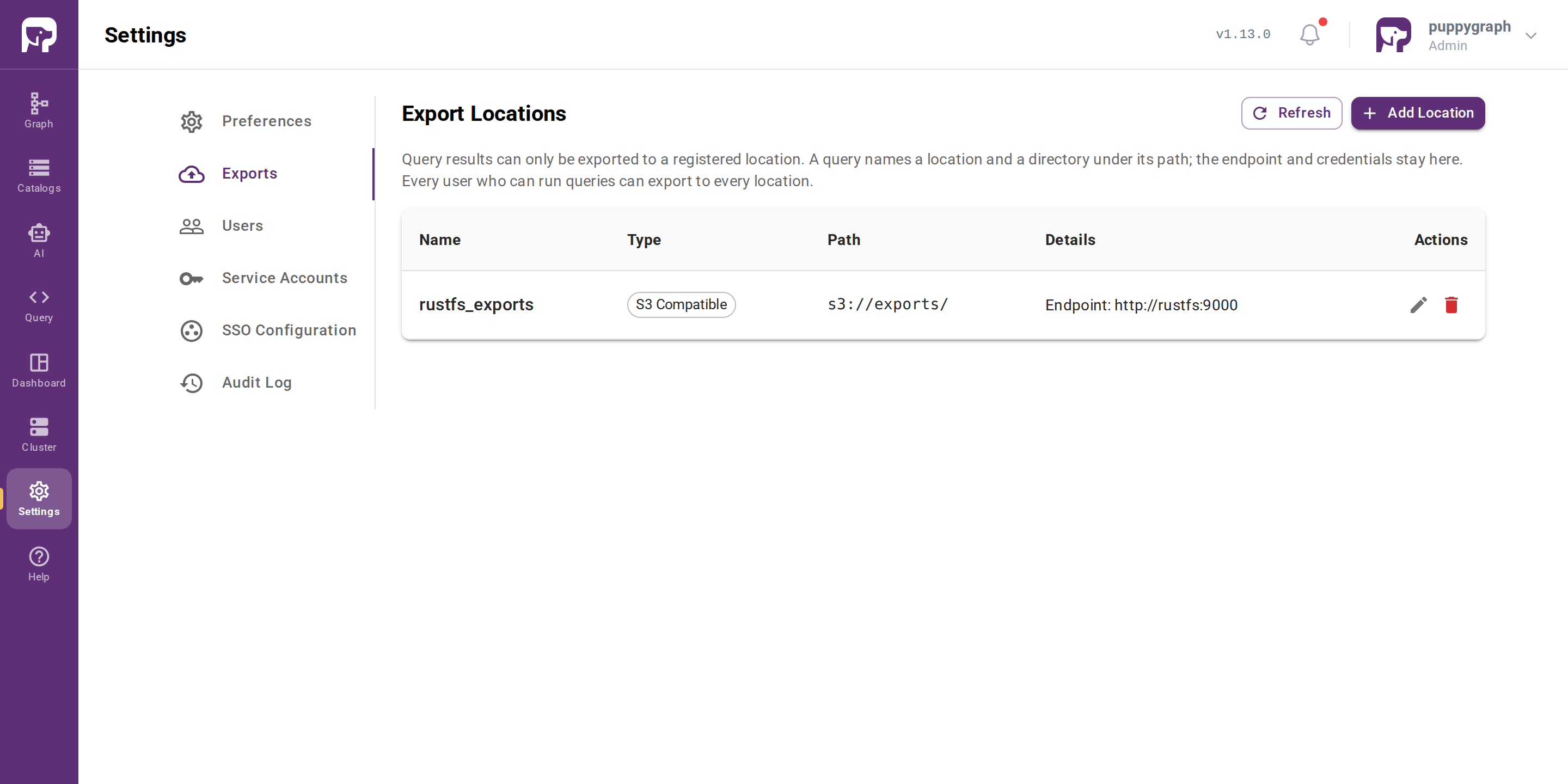

Exports tab listing the rustfs_exports location and its base path
Admin view with location management controls

Use the edit or delete icon in Actions to manage a location. When editing, leave a masked value (******) unchanged to keep the stored value. Deleting a location causes subsequent queries that name it to fail.

For REST API, Cypher, and Gremlin examples, see Manage locations through the API.

You can view registered locations, but Add Location and Actions are hidden. To choose a destination:

  1. Open Settings → Exports.
  2. Note the Name and Path of a suitable location. Queries use its name, for example rustfs_exports.
  3. If no suitable location exists, or its path or credentials need changing, ask an Admin to add or edit it.

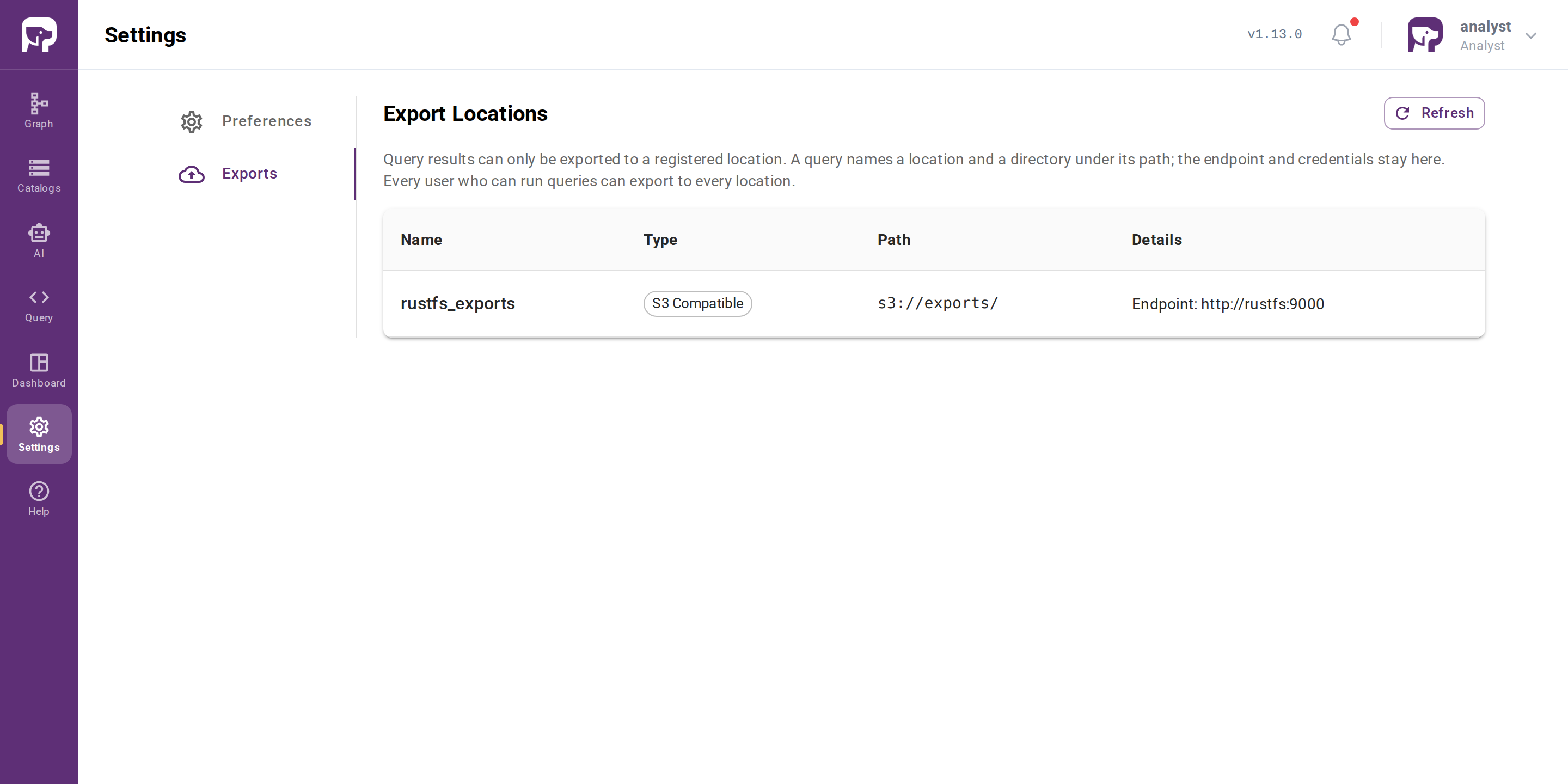

Read-only Exports tab without add, edit, or delete controls
Analyst view in PuppyGraph 1.13.0

UserAdmin, GraphAdmin, and Analyst users can export to an existing location without its storage credentials. Viewer users can view the list but cannot run export queries.

Location names are case-sensitive, contain at most 64 ASCII letters, digits, underscores, or hyphens, and start with a letter or underscore. The base path must use a scheme supported by the storage type; PuppyGraph adds a trailing / if needed.

Export to a registered location

Exporting requires QUERY:execute: Admin, UserAdmin, GraphAdmin, and Analyst can export to every registered location. Location management permission is not required.

Use <location>:<directory> as the target. For the location above, rustfs_exports:reports/2026 writes under s3://exports/reports/2026/. Replace rustfs_exports in the examples with your registered location's name. These examples use person nodes with a name property, as in the built-in modern graph.

EXPORT TO 'rustfs_exports:reports/2026'
MATCH (p:person)
RETURN p.name AS name

g.with("exportTo", "rustfs_exports:reports/2026")
  .V().hasLabel("person")
  .project("name").by("name")

CSV is the default, so no PROPERTIES clause or additional export options are required. For Parquet:

EXPORT TO 'rustfs_exports:reports/parquet'
PROPERTIES { fileType: 'parquet' }
MATCH (p:person)
RETURN p.name AS name

g.with("exportTo", "rustfs_exports:reports/parquet")
  .with("fileType", "parquet")
  .V().hasLabel("person")
  .project("name").by("name")

The first : separates the location name from the directory. rustfs_exports: writes directly under the base path. Directories accept Unicode letters and digits plus ., _, -, =, :, and /, so rustfs_exports:dt=2026-09-10T00:00:00Z/ is valid. Spaces, . or .. path segments, and URI targets such as rustfs_exports:s3://other-bucket/ are rejected. A separate location option is not supported.

The response includes TaskName and State. While the state is RUNNING, check progress with CALL db.showExportTask('<TaskName>') in Cypher or graph.showExportTask('<TaskName>') in Gremlin. A finished export is SUCCESS, or FAILED with an ErrorMessage.

Export options

Key Description Default
fileType csv or parquet; table requires an Iceberg or Hive catalog csv
catalog Registered catalog to use instead of an export location; changes the target to a full URI or database.table Unset
transferSize Number of results per transfer batch 10000
timeout Export SQL timeout, in seconds 43200 (12 hours)

Graph algorithm results

Gremlin graph programs use the same targets and options in submitAndSave:

graph.program(
    PageRankProgram.build()
        .maxIteration(20)
        .vertices("person")
        .edges("knows")
        .create()
).submitAndSave([
    "exportTo": "rustfs_exports:reports/pagerank"
])

For Cypher algorithms, place EXPORT TO before the algorithm query, as in the PageRank export example.

Location settings by storage type

These are registration fields, not query options. Use them in the UI or in the JSON sent to the REST API below.

type path scheme Authentication and connection fields
S3_COMPATIBLE s3:// or s3a:// Required: endpoint, identifier (access key), credential (secret key). Optional: region, enablePathStyleAccess. Register MinIO AIStor, RustFS, and other S3-compatible services with this type and their service endpoint; see below.
S3 s3:// or s3a:// Required: region, identifier (AWS access key ID), credential (AWS secret access key). No custom endpoint.
GCS gs:// Application default credentials, a Compute Engine service account, or a service account key; see below.
AZURE_DLS2 abfs:// or abfss:// Storage account key or an identity option; see below.
HDFS hdfs:// The path includes the host and port. For simple authentication, provide both identifier and credential. For Kerberos, configure Kerberos authentication.

S3-compatible storage

Version requirement

The S3_COMPATIBLE type and enablePathStyleAccess are available in PuppyGraph 1.13.0 and later. Earlier versions name this type MINIO and always use path-style requests. PuppyGraph 1.13.0 still accepts MINIO and lists such locations as S3_COMPATIBLE.

enablePathStyleAccess sets where requests put the bucket name:

  • true, the default when the field is omitted: in the URL path, as in http://rustfs:9000/exports/. In the UI, Enable path style access is on.
  • false: in the host name, as in http://exports.rustfs:9000/. Use this only for a service that requires virtual-hosted-style requests.

Other storage types reject enablePathStyleAccess.

Google Cloud Storage

Choose one authentication method:

  • JSON key file: mount the file and set GOOGLE_APPLICATION_CREDENTIALS to its path inside PuppyGraph. No credential fields are needed in the location. See Google Cloud authentication.
  • Attached Compute Engine service account: set useComputeEngineService to true. The VM must have an attached service account and an access scope that allows storage operations.
  • Service account key: provide serviceAccountEmail, identifier (private key ID), and credential (private key). Optionally set impersonationServiceAccount.

Azure Data Lake Storage Gen2

Use a path such as abfss://<container>@<account>.dfs.core.windows.net/exports/ and choose one authentication method:

  • Storage account key: identifier (storage account name) and credential (access key).
  • Managed identity: useManagedIdentity: true, tenantId, and clientId.
  • Workload identity: useWorkloadIdentity: true, tenantId, clientId, and tokenFile.
  • Service principal: clientId, clientSecret, and endpoint (the OAuth2 token URL).

Manage locations through the API

The REST API enforces the same permissions as the UI:

Operation Request Required permission
Create POST /ui-api/exportLocation with the location JSON CATALOG:write (Admin only)
List GET /ui-api/exportLocation CATALOG:read (all built-in roles)
Update PUT /ui-api/exportLocation with the complete location JSON, including its name CATALOG:write (Admin only)
Delete DELETE /ui-api/exportLocation?name=<location-name> CATALOG:write (Admin only)

For example, register the RustFS location:

curl -u puppygraph:puppygraph123 \
  -X POST http://localhost:8081/ui-api/exportLocation \
  -H 'Content-Type: application/json' \
  -d '{
    "name": "rustfs_exports",
    "type": "S3_COMPATIBLE",
    "path": "s3://exports/",
    "endpoint": "http://rustfs:9000",
    "identifier": "<rustfs-access-key>",
    "credential": "<rustfs-secret-key>"
  }'

Listing returns a locations array with identifier, credential, and clientSecret masked as ******. Sending a masked value back in an update preserves the stored value. If a mutation returns HTTP 503 with stored: true, the change is saved but has not reached every query engine; PuppyGraph retries delivery automatically.

Cypher and Gremlin require QUERY:execute in addition to the operation's permission above. Viewer users can list locations through Settings → Exports or GET /ui-api/exportLocation.

Run each statement separately, replacing <location JSON> with the same JSON object used by the REST API, encoded as a string:

CALL puppy.schema.addExportLocation('<location JSON>')
YIELD success, error_message

CALL puppy.schema.updateExportLocation('<location JSON>')
YIELD success, error_message

CALL puppy.schema.listExportLocations() YIELD name

CALL puppy.schema.removeExportLocation('rustfs_exports')
YIELD success, error_message

graph.getTopology2().addExportLocation('<location JSON>')
graph.getTopology2().updateExportLocation('<location JSON>')
graph.getTopology2().listExportLocations()
graph.getTopology2().removeExportLocation('{"name":"rustfs_exports"}')

Export using a registered catalog

Set catalog to reuse its storage configuration and credentials. File exports use a full URI compatible with the catalog's storage:

EXPORT TO 's3://my-bucket/exports/people/'
PROPERTIES { catalog: 'iceberg_catalog' }
MATCH (p:person)
RETURN p.name AS name

g.with("exportTo", "s3://my-bucket/exports/people/")
  .with("catalog", "iceberg_catalog")
  .V().hasLabel("person")
  .project("name").by("name")

Restrict catalog export paths

By default, a catalog file export can write to any destination the catalog credentials can write to, and PuppyGraph logs a warning at startup. For production, set the GRAPH_FEATURES environment variable on every PuppyGraph node to restrict catalog file exports to an allowed URI prefix. For example, with Docker:

docker run \
  -p 8081:8081 -p 8182:8182 -p 7687:7687 \
  -e PUPPYGRAPH_USERNAME=puppygraph \
  -e PUPPYGRAPH_PASSWORD=puppygraph123 \
  -e GRAPH_FEATURES=feature.engine.exportCatalogAllowedPathPrefixes:s3://my-bucket/exports/ \
  -d --name puppy --rm --pull=always \
  puppygraph/puppygraph:latest

The target must start with the allowed prefix; matching is case-sensitive, and . and .. path segments are rejected. This setting does not restrict registered locations or table exports. GRAPH_FEATURES separates settings with commas, so it accepts a single prefix.

Export as an Iceberg or Hive table

Table export is experimental. Use an Iceberg or Hive catalog and set fileType to table. The target is database.table, and the new table stores results in Parquet format.

EXPORT TO 'mydatabase.result_table'
PROPERTIES { catalog: 'iceberg_catalog', fileType: 'table' }
MATCH (p:person)
RETURN p.name AS name

g.with("exportTo", "mydatabase.result_table")
  .with("catalog", "iceberg_catalog")
  .with("fileType", "table")
  .V().hasLabel("person")
  .project("name").by("name")

For Hive setup, see Connecting to Hive. A Kerberos-enabled cluster also requires Kerberos configuration.
